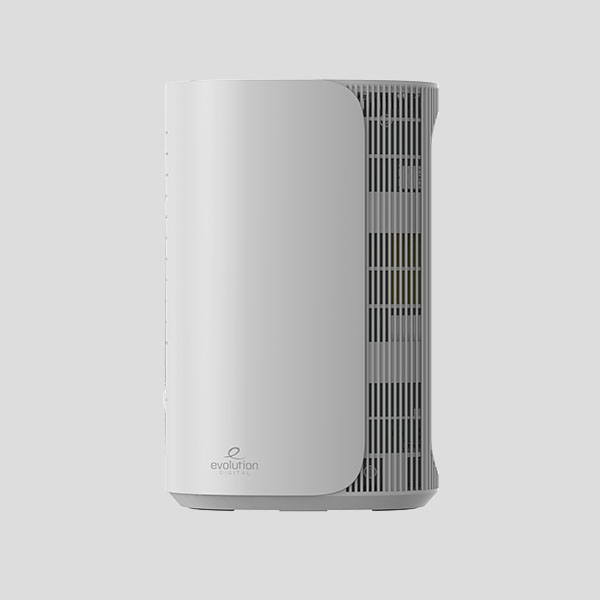

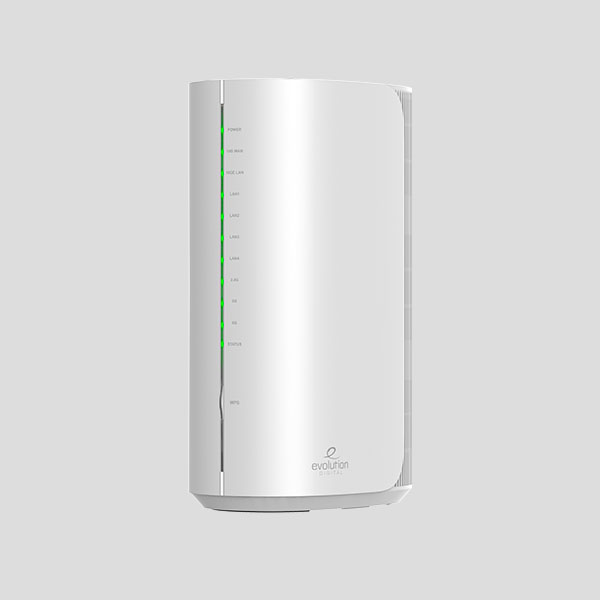

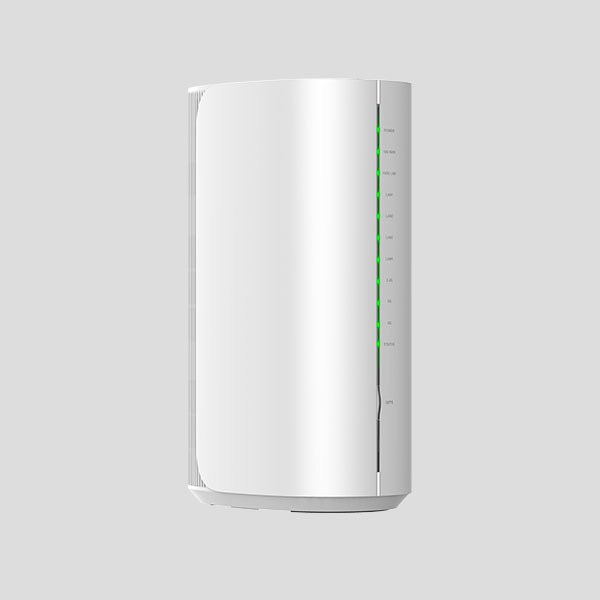

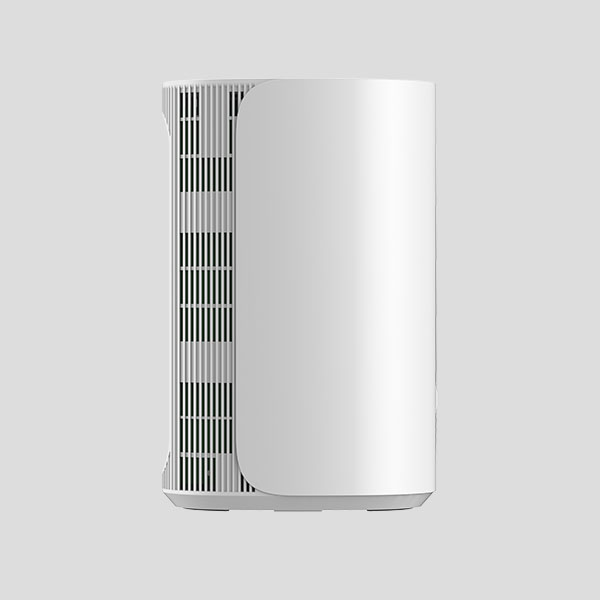

EVO8000AP Wi-Fi 7 Tri-Band 10G AP Router / Mesh Beacon
The EVO8000AP is a tri-band Wi-Fi 7 (802.11be) symmetric 10GbE WAN and LAN access point built for serious throughput. Its 4×4 radios span 2.4, 5, and 6 GHz with channel widths up to 320 MHz, delivering a peak PHY rate of 18.58 Gbps and per-band speeds up to 11.5 Gbps on 6 GHz. EVO8000AP functions as either the primary AP or a mesh beacon — giving service providers a high-speed, flexible way to extend stable, high-quality Wi-Fi to every corner of the home.
Currently certified with OpenSync 6.6 with a roadmap to Plume Firmware Agent.
| Specifications | |||
| Hardware | |||
| CPU | Quad-core @ 2.0 GHz | ||
| Interfaces | |||

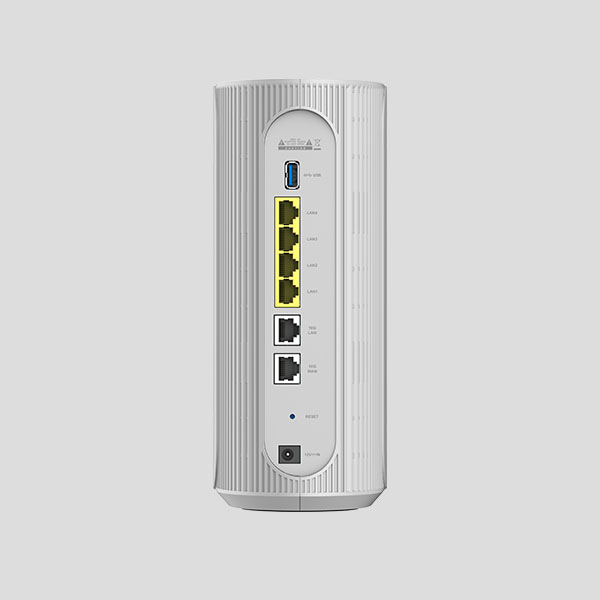

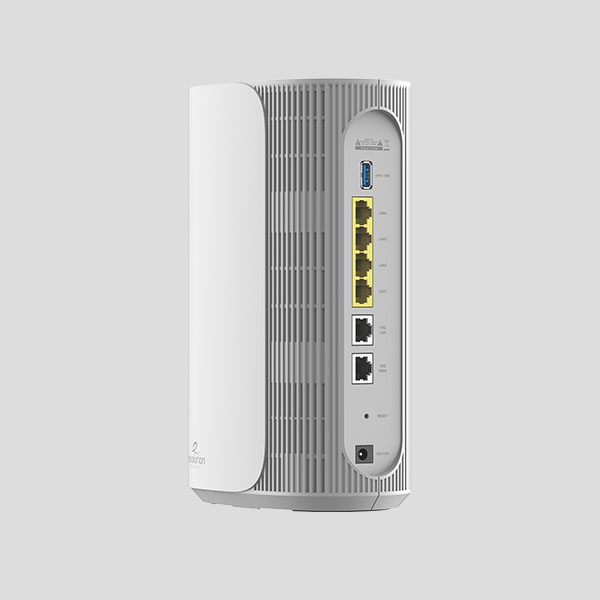

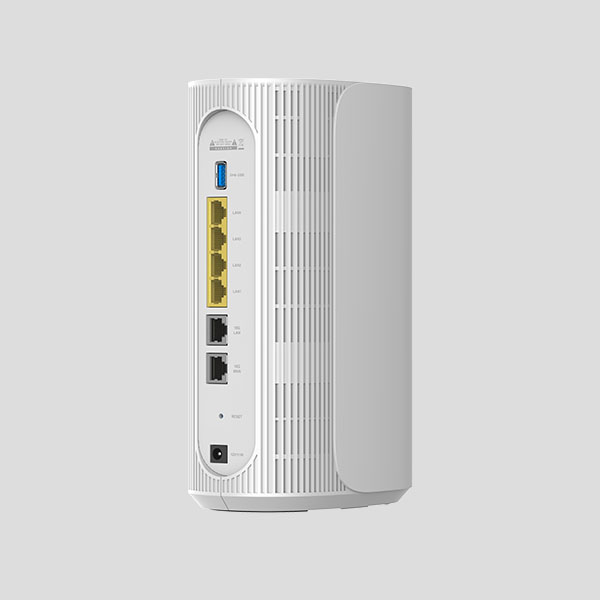

| WAN | 10GbE (x1) | LAN | 10GbE (x1) / 1GbE (x4) |
| USB | USB 3.0 (x1) | BLE | Bluetooth 5.0 |
| Network Features | |||
| Protocols | IPv4, IPv6 | WAN Types | Dynamic IP, Static IP, PPPoE |
| Wi-Fi Encryption | WPA2/3 Personal / Enterprise | WLAN | Guest Network |
| QoS | IEEE 802.1p | ||
| Wi-Fi | |||
| Standard | Wi-Fi 7 (802.11a/b/g/n/ac/ax/be) | Band Config | Tri-Band 4×4 (2.4 GHz) + 4×4 (5GHz) + 4×4 (6GHz) |
| Channel Width | 20, 40, 80, 160, 320 MHz | Spectral Bands | 2.4, 5, 6 GHz |
| Per Band PHY | 1.38, 5.7, 11.5 Gbps | Peak PHY | 18.58 Gbps |
| Peak QAM | 4K QAM | ||
| Software Features | |||
| Plume / OpenSync | OpenSync 6.6 Certified | Smart Wi-Fi | Intelligent Mesh, Band/Client Steering |
| CAF Support | Samknows Certified and Streambow Cert In-Process (Via Plume) | Mode | Router or Bridge Mode |
| Physical Specifications | |||
| Size | 9.4 × 7.4 × 3.1 in (240 × 190 × 80 mm) | Weight | 2.5 lbs (1.13 kg) |
| Operating Temp | 0°C~40°C (32°F~104°F) | Buttons | Power, Reset, WPS |
| Power Supply | External, 12V/3.33A | ||
| Always On | |||
| Cellular Failover | USB EVO LTE Dongle Integrated | ||
