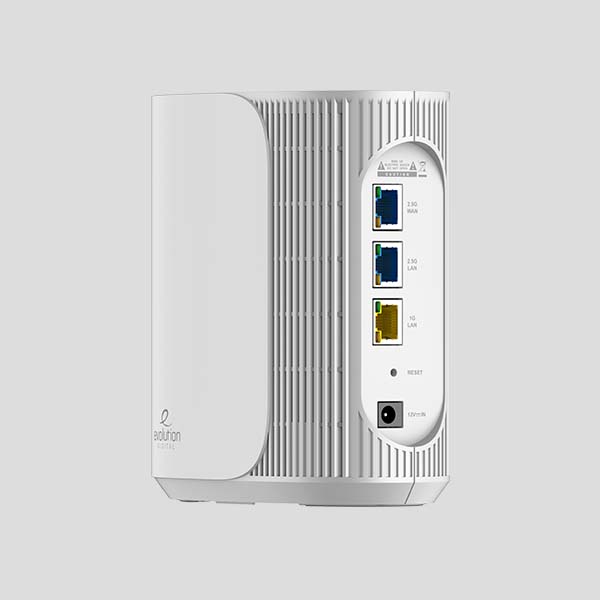

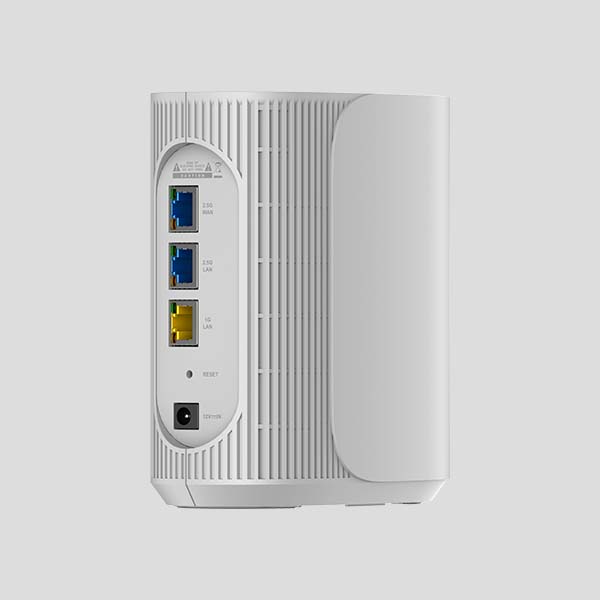

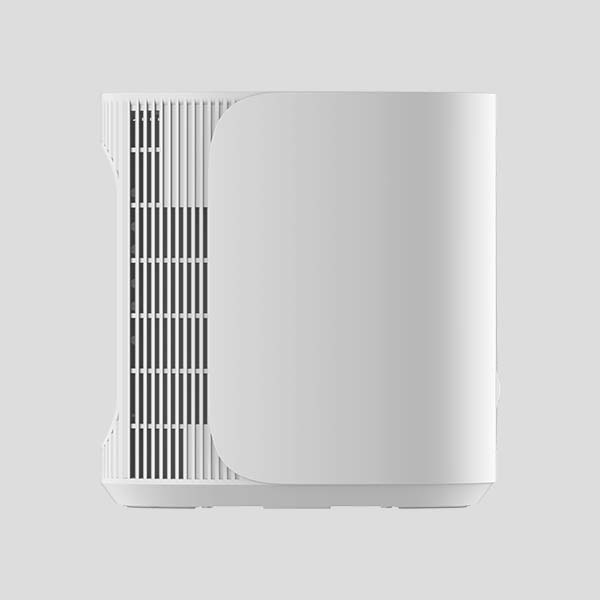

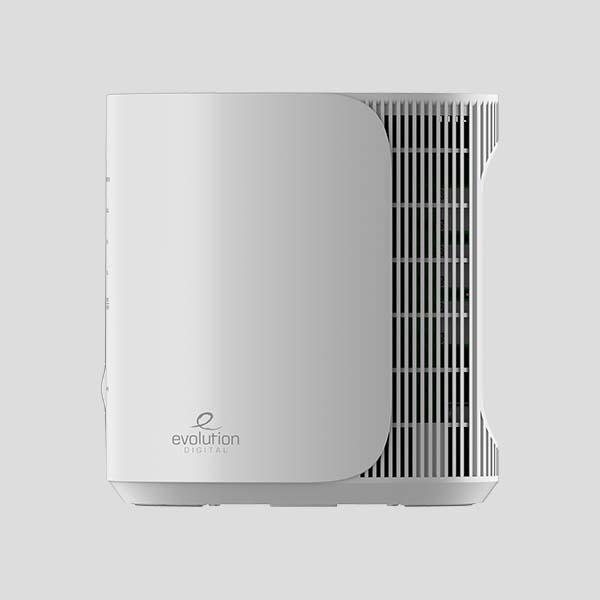

EVO7000AP Wi-Fi 7 Tri-Band 2.5G AP Router / Mesh Beacon
Evolution Digital's EVO7000AP Wi-Fi 7 AP dual-operational AP router and mesh beacon enables service providers to safely provide high-quality Wi-Fi to all locations in the subscriber's home, functioning as the main wireless AP in the home or as a mesh beacon to extend Wi-Fi coverage.
By using 802.11be technology, customers enjoy faster and more stable services than before, ensuring flexibility in location and ease of installation.
| Specifications | |||
| Hardware | |||
| CPU | Quad-core @ 2.0 GHz ARMv8 | ||

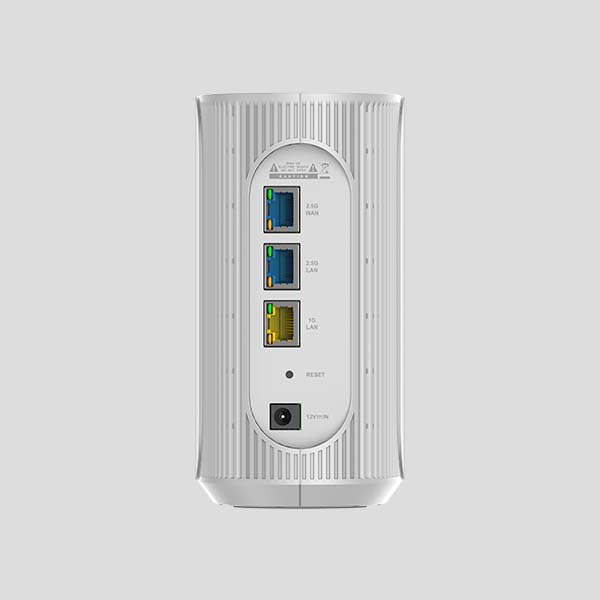

| Interfaces | |||
| WAN | 2.5GbE (x1) | LAN | 2.5GbE (x1) / 1GbE (x1) |
| BLE | Bluetooth 5.0 | ||
| Network Features | |||
| Protocols | IPv4, IPv6 | WAN Types | Dynamic IP, Static IP, PPPoE |
| Wi-Fi Encryption | WPA2/3 Personal/ Enterprise | WLAN | Guest Network |
| QoS | IEEE 802.1p | ||
| Wi-Fi | |||
| Standard | Wi-Fi 7 (802.11a/b/g/n/ac/ax/be) | Band Config | Tri-Band 2×2 (2.4 GHz) + 4×4 (5GHz) + 4×4 (6GHz) |
| Channel Width | 20, 40, 80, 160, 320 MHz | Spectral Bands | 2.4, 5, 6 GHz |
| Per Band PHY | 0.7, 5.7, 11.5 Gbps | Peak PHY | 17.9 Gbps |
| Peak QAM | 4K QAM | ||
| Software Features | |||
| Plume / OpenSync | OpenSync 6.6 Certified | Smart Wi-Fi | Intelligent Mesh, Band/Client Steering |
| CAF Support | Samknows Certified and Streambow Cert In-Process (Via Plume) | Mode | Router or Bridge Mode |
| Physical Specifications | |||
| Size | 3.1 x 5.9 x 5.9 in (80 x 150 x 150 mm) | Weight | 1 lb (.45 kg) |
| Operating Temp | 0°C~40°C (32°F~104°F) | Buttons | Reset, WPS |
| Power Supply | External, 12V/2.5A | ||
