EVOLUTION DIGITAL

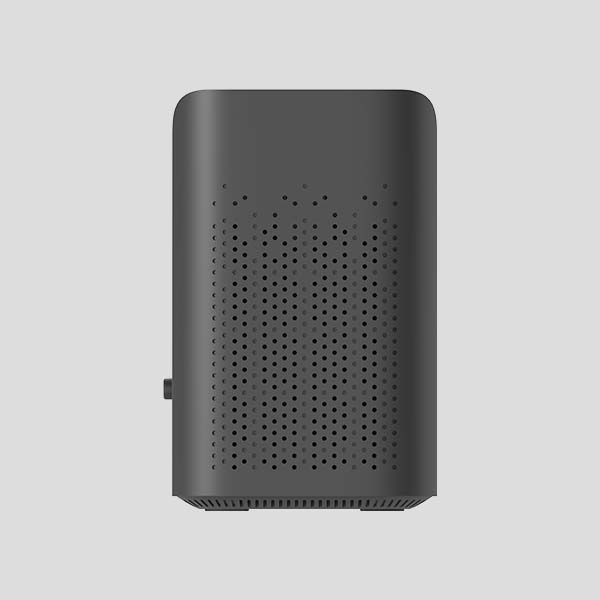

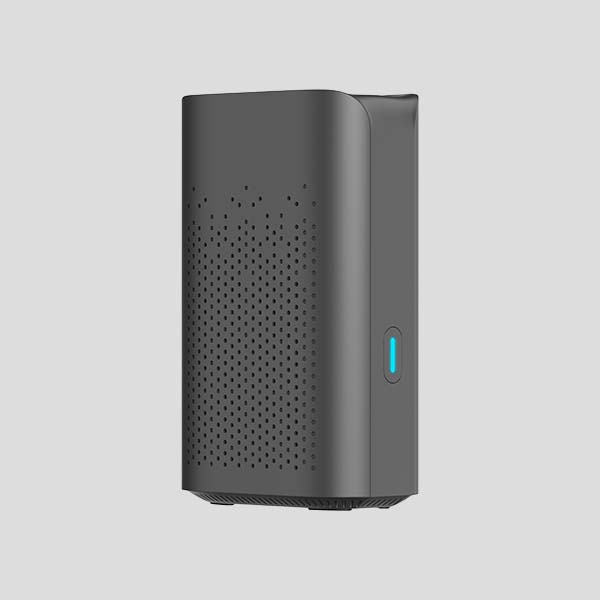

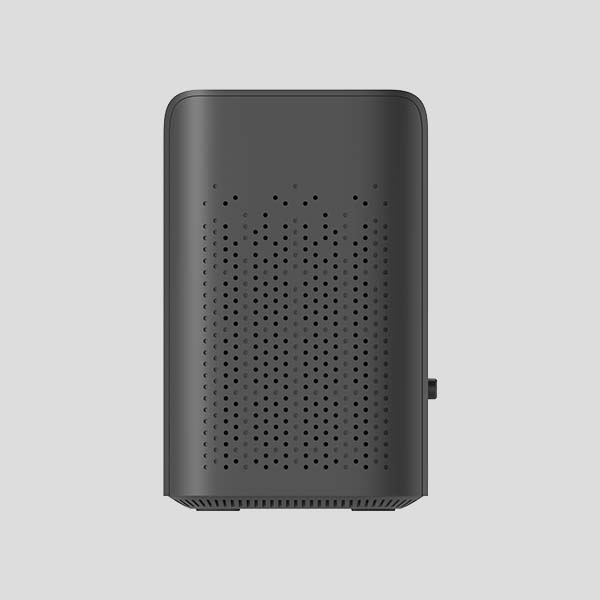

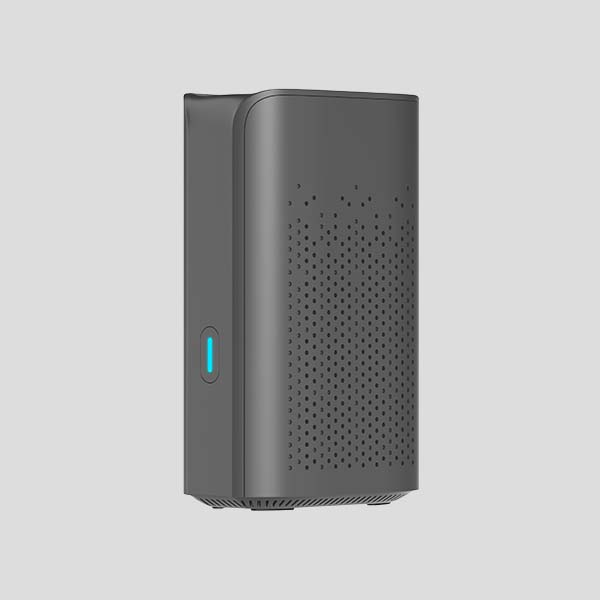

EVO6022AP Wi-Fi 6 Router / Mesh Beacon
The EVO6022AP, a cutting-edge Wi-Fi 6 AP router and mesh beacon, empowers service providers with a secure, versatile solution for unparalleled Wi-Fi performance. Whether used as a primary AP or mesh extension, its technology ensures seamless coverage and enhanced subscriber satisfaction with innovative software integration.
| Specifications | |||
| Hardware | |||
| Memory | 512MB | Flash | 256MB |
| Interfaces | |||
| WAN | 1 x 1GE WAN | LAN | 2 x 1GE LAN |
| Network Features | |||
| Protocols | IPv4, IPv6 | WAN Types | Dynamic IP, Static IP |
| Wi-Fi Encryption | WPA2/3 Personal / Enterprise | WLAN | Guest Network / Multi-SSID |
| QoS | IEEE 802.1p | ||
| Wi-Fi | |||
| Standard | Wi-Fi 6 (802.11 a/b/g/n/ac/ax) | Band Config | Dual-band |
| Channel Width | 20, 40, 80, 160 MHz | Spectral Bands | 2.4GHz (2x2), 802.11ac/ax 5GHz (2x2) |
| Throughput | AX3000 3.0 Gbps, 5 GHz: 2402 Mbps (802.11ax), 2.4 GHz: 574 Mbps (802.11ax) |
||
| Software Features | |||
| Plume | HomePass, Haystack, Uprise, Harvest | OpenSync | OpenSync 4.4, Roadmap to OS6.4 |
| Mode | Router or Bridge Mode | Smart Wi-Fi | Intelligent Mesh, Band/Client Steering |
| Physical Specifications | |||
| Operating Temp | -10°C to 40°C | Storage Temp | -20°C to 50°C |
| Operation Humidity | 10%~80% non-condensing | Storage Humidity | 0%~90% non-condensing |
| LEDs | Network Status Indicator, Wi-Fi Status Indicator, Power Indicator, WPS Status Indicator | Buttons | Power ON/OFF, WPS, and Reset |
| Antenna | 5 x 3dBi Internal Antennas | Cable | 1M Category 5e RJ45 Cable (x1) |
| Power Supply | 12V/1A | ||
