EVOLUTION DIGITAL

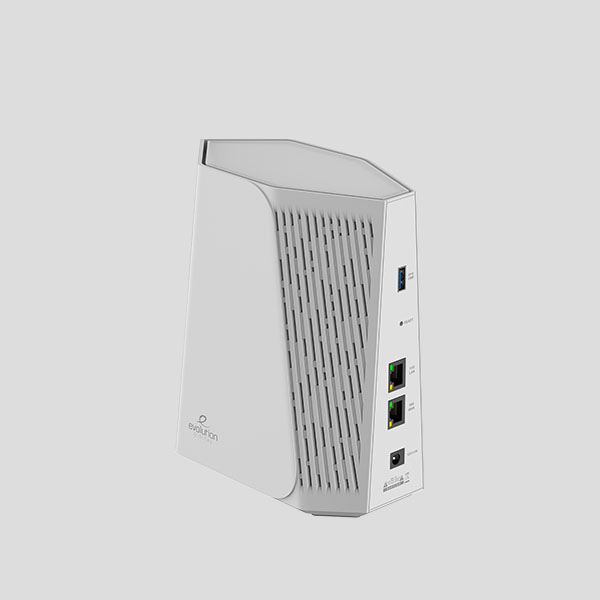

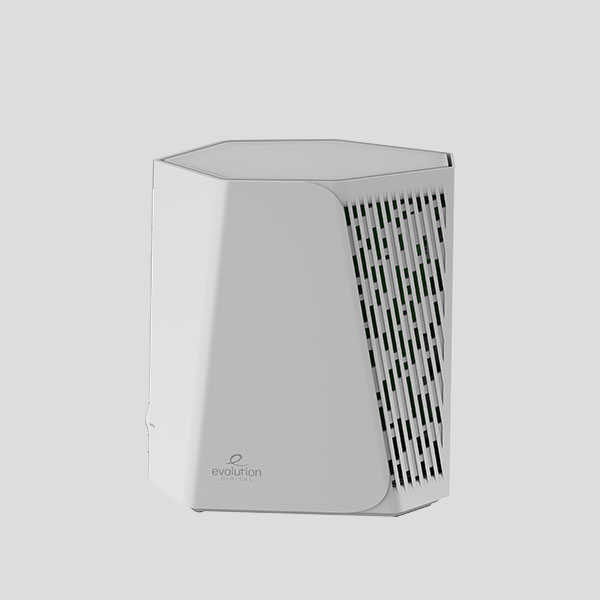

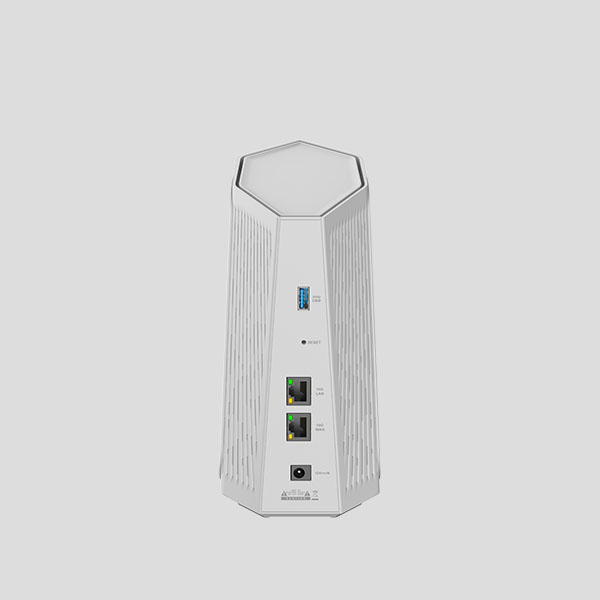

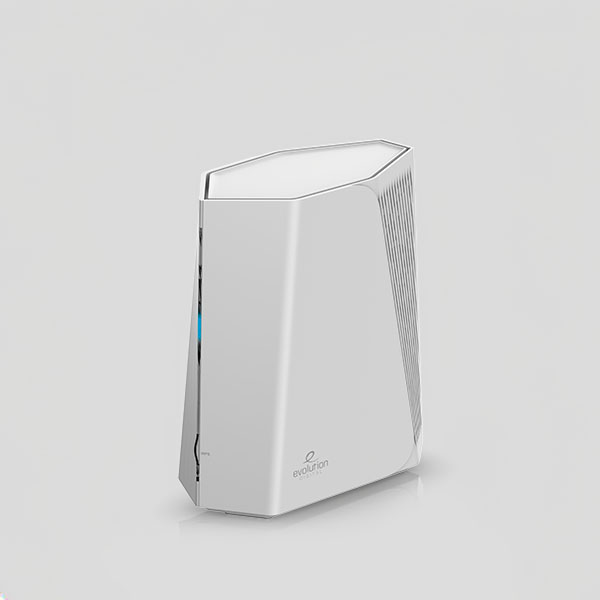

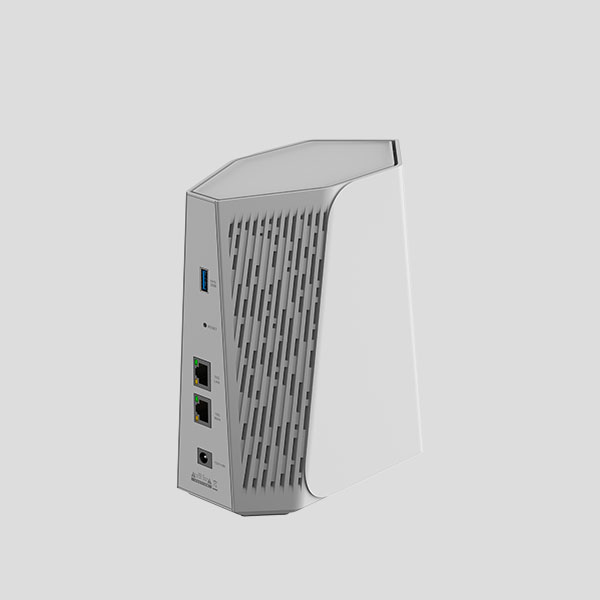

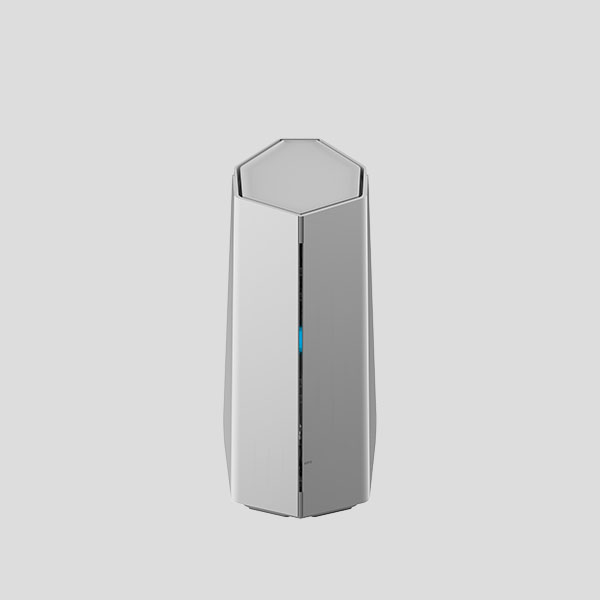

EVO8244AP Wi-Fi 8 Tri-Band 10G Router/Mesh Beacon
Extend your network into the Wi-Fi 8 era with ultra-high reliability (UHR). EVO8244AP is a tri-band Wi-Fi 8 (802.11bn) access point designed to act as either router or mesh beacon to provide reliable, high-performance coverage throughout the home.
It combines 4×4 radios on both 6 GHz and 5 GHz with a 2x2 2.4 GHz radio, supporting channel widths up to 320 MHz and peak throughput of 11.5 Gbps on 6 GHz. Dual 10 Gigabit interfaces and hardware acceleration ensure the mesh beacon keeps pace with demanding, multi-device households, delivering ~25% improvement in rate-over-range throughput, reduced latency variation, and lower packet loss under heavy load. EVO8244AP is targeted to launch with Plume’s roadmap Firmware Agent.
| Specifications | |||
| Interfaces | |||
| WAN / LAN | 10 Gigabit WAN/LAN (x1) | LAN | 10 Gigabit LAN (x1) |
| Additional LAN | 1 / 2.5 GbE (TBD) | USB | USB 3.0 |
| BLE | Bluetooth LE 5.0 | ||
| Wi-Fi | |||
| Standard | Wi-Fi 8 (802.11be(bn)/ax/ac/n/a/b/g) | Band Config | Tri-Band 2×2 (2.4GHz) + 4×4 (5GHz) + 4×4 (6GHz) |
| 2.4 GHz | 802.11bn/be/ax/ac/n/b/g (2×2) | 5 GHz | 802.11be(bn)/ax/ac/n/a (4×4) |
| 6 GHz | 802.11be(bn)/ax/ac/n/a (4×4) | Channel Width | 20, 40, 80, 160, 320 MHz |
| Throughput | |||
| 6 GHz | 11.5 Gbps | 5 GHz | 5.7 Gbps |
| 2.4 GHz | 688 Mbps | ||
| Software Features | |||
| Plume / OpenSync | Plume Firmware Agent, GA 2027 | Smart Wi-Fi | Intelligent Mesh, Band/Client Steering |
| CAF Support | Samknows and Streambow Roadmapped (Via Plume) | Mode | Router or Bridge Mode |
| Physical Specifications | |||
| Dimensions | 80 × 160 × 180 mm (3.15 × 6.30 × 7.09 in) | LED | 1 RGB LED |
| Always On | |||
| Cellular Failover | USB EVO LTE Dongle (Planned) | ||
| © Evolution Digital, LLC. All Rights Reserved. All values are typical unless noted otherwise. Specifications are subject to change without notification. |
